nLTS-P2UE
SimulCharge™, PoE, Ethernet, 2 x USB Adapter for Lenovo Micro USB Tablets
$134.99 / Web Price
The nLTS-P2UE provides compatible Lenovo Micro USB tablets* with SimulCharge™, Power over Ethernet (PoE), Ethernet and two USB-A ports for peripherals. SimulCharge™ ensures the mobile device can simultaneously access the adapter’s wired network connection and any USB peripherals attached to the adapter while it is charging. The adapter also features Docking Detect technology.
The adapter provides 10.4 watts of charging power and a reliable 10/100-capable network connection through a single CAT5/5e/6 Ethernet cable connected to a PoE-enabled switch or injector.
How the nLTS-P2UE Works
The nLTS-P2UE adapter provides compatible Lenovo Micro USB tablets* with simultaneous charging and access to data (SimulCharge™). It features Power over Ethernet, Ethernet, two USB-A ports for peripherals and Docking Detect technology.
Power at a Distance with PoE
Leveraging Power over Ethernet (PoE), the adapter does not require a dedicated AC source, as it can be fully powered through its built-in Ethernet port**. Simultaneously, this port can provide 10/100 Ethernet connectivity between the tablet and network, providing a single cable solution for tablet power and data. PoE allows greater options for tablet placement as it can be used in areas with limited electrical outlets. It can be placed up to 328 ft (100 m) from the power source.
The SimulCharge™ adapter offers two USB-A ports. This allows customers to attach USB-enabled peripherals, such as a scanner and printer for a tablet kiosk setup.
Reliable Device Connection
Docking Detect ensures the “greeting” protocols between the SimulCharge™ adapter and mobile device are executed correctly and consistently every time they are connected.
This allows the adapter to be a plug-and-play technology that ensures the mobile device always operates in USB Host mode.

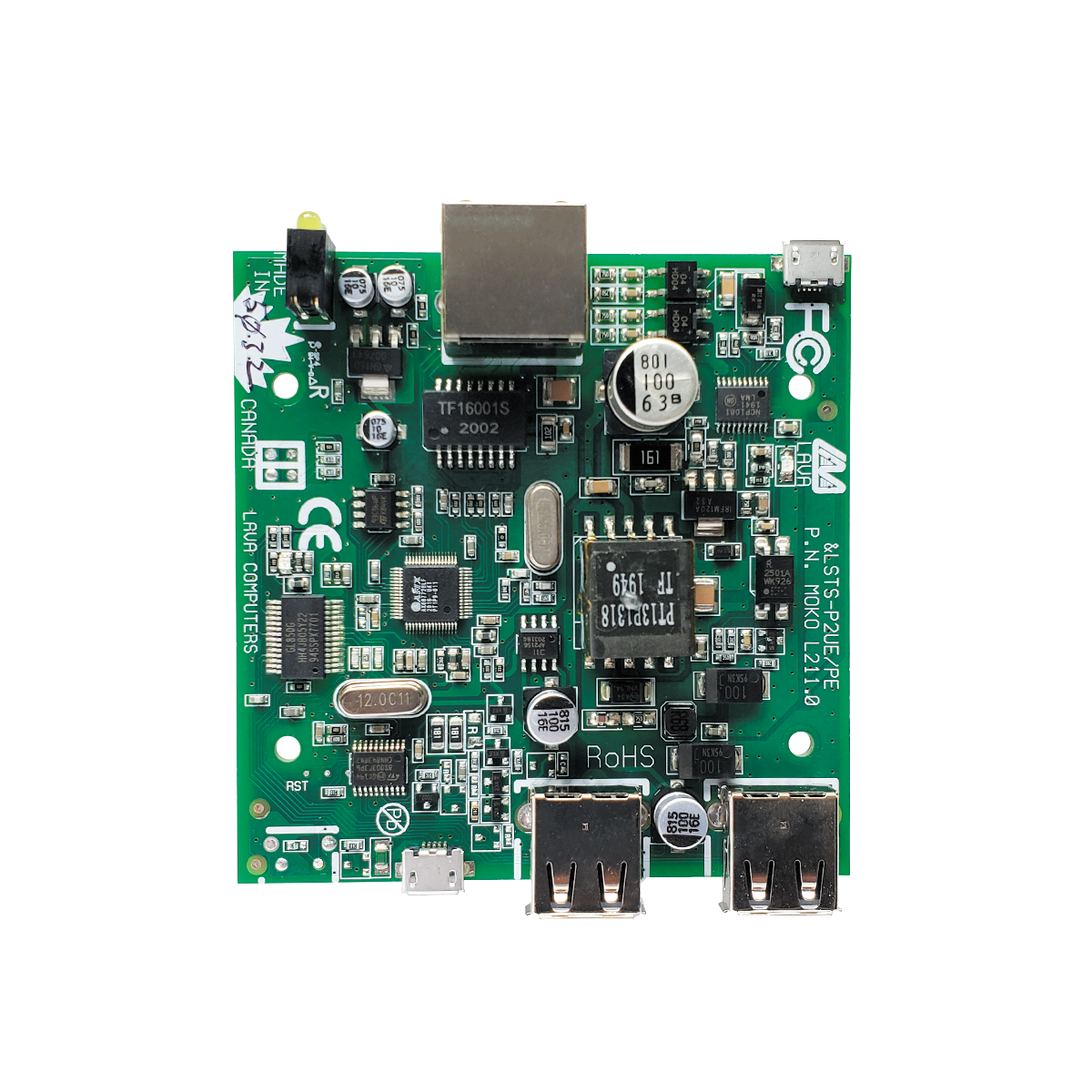

The adapter comes in a beige ABS casing that protects the electronics from mild shocks and impacts, allowing it to be used in different implementations. It ships with a Micro USB to Micro USB cable to connect the mobile device. This custom LAVA cable must not be extended or replaced with a third-party one. Doing so will cause the mobile device to stop working.
*The nLTS-P2UE is not compatible with all Lenovo tablets. Please see the list of tested Lenovo devices.
**The tablet can also be powered through the adapter’s Micro USB-B port, which is rated for the standard 5 volts at 2 amps. It is recommended to use the charging cable that came with the tablet. A separate power supply is not included.
ADDITONAL INFORMATION
System Requirements
POWER SUPPLY
PoE-Capable Network Switch or Power Injector (up to 10.4W)
For non-PoE operational use, the Micro USB-B port can be used (port rated for maximum 5V at 2A input)
nLTS COMPATIBILITY
Compatibility ListSpecifications
CABLES
1 x Micro USB to Micro USB cable (3.3 ft / 1 m) to the tablet.
Note: The cable is included with the adapter.
PORTS/CONNECTORS
1 x RJ45 10/100 Ethernet port (LAN)
2 x USB-A ports (for USB 2.0 accessories)
1 x Micro USB-B port (for tablet connection)
1 x Micro USB-B port (the Aux. 5V input)
1 x Charge Status LED
1 x Device Link LED
1 x Ethernet Link/Activity LED
1 x Tablet USB Activity LED
MEASUREMENTS
Depth: 3.3 inches (83 mm)
Width: 3.8 inches (97 mm)
Height: 1.7 inches (44 mm)
Weight: 4.1 oz
Features
Simultaneous USB host and charging for Lenovo Micro USB tablets
Wired Networking (10/100 Ethernet) support
Power over Ethernet (Class 0)
Prevents power drain from the tablet to USB peripherals in the event of power loss
Allows for installation for up to 328 ft (100m) from power source
2 x USB 2.0 Type A ports
LAVA Limited Warranty
No tablet rooting required
Applications
POINT OF SALES
Product Catalogues
Price Checking
Line Busting & Ticketing
POS systems
Menus, order taking
Transportation & Logistics endpoints
Digital Signage
WORKFORCE MANAGEMENT
Conference Room Scheduling
Timecard
Dispatching
In-vehicle data capture
Virtual Concierge
Patient Check In
KNOWLEDGE SHARING
Web/Video conferencing
Trade Show Guides
Customer Surveys
Remote control
Way-finding
QUALITY CONTROL
Material tracking
Production
Scheduling
