nSynC-PE
SimulCharge™, PoE, Ethernet Adapter for USB-C Mobile Devices
$139.99 / Web Price
The nSynC-PE provides compatible USB-C mobile devices* with SimulCharge™, Power over Ethernet (PoE) and Ethernet. SimulCharge™ ensures the mobile device can simultaneously access the adapter’s wired network connection and any USB peripherals attached to the adapter while it is charging. The adapter also features Docking Detect technology.
The adapter provides 10.4 watts of charging power and a reliable 10/100-capable network connection through a single CAT5/5e/6 Ethernet cable connected to a PoE-enabled switch or injector.

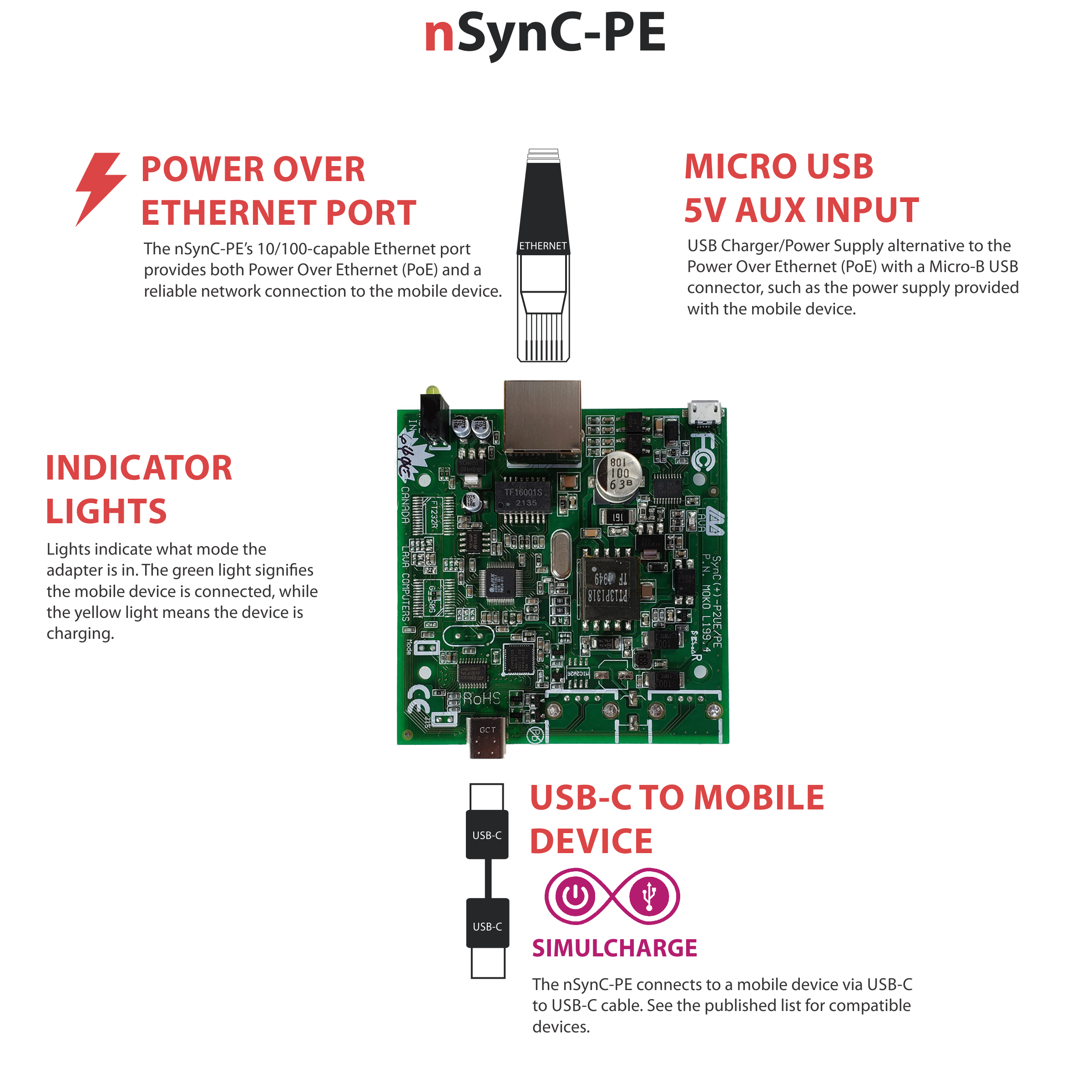

How the nSynC-PE Works
The nSynC-PE adapter provides compatible USB-C mobile devices with simultaneous charging and access to data (SimulCharge). It features Power over Ethernet, Ethernet and Docking Detect technology.
Power at a Distance with PoE
Leveraging Power over Ethernet (PoE), the adapter does not require a dedicated AC source, as it can be fully powered through its built-in Ethernet port**. Simultaneously, this port can provide 10/100 Ethernet connectivity between the tablet and network, providing a single cable solution for tablet power and data. PoE allows greater options for tablet placement as it can be used in areas with limited electrical outlets. It can be placed up to 328 ft (100 m) from the power source.
Reliable Device Connection
Docking Detect ensures the “greeting” protocols between the SimulCharge adapter and mobile device are executed correctly and consistently every time they are connected. This allows the adapter to be a plug-and-play technology that ensures the mobile device always operates in USB Host mode.
The adapter comes in a black ABS casing that protects the electronics from mild shocks and impacts, allowing it to be used in different implementations.


It does not ship with the USB-C to USB-C cable required to connect the adapter to the mobile device. This cable can be purchased separately from LAVA or a third-party supplier.
*The nSynC-PE is not compatible with all USB-C mobile devices. Please see the list of tested devices.
**The mobile device can also be powered through the adapter’s Micro USB-B port, which is rated for the standard 5 volts at 2 amps. It is recommended to use the charging cable that came with the device. A separate power supply is not included.
ADDITONAL INFORMATION
System Requirements
POWER SUPPLY
PoE-Capable Network Switch or Power Injector (up to 10.4W)
For non-PoE operational use, a USB charger/power supply with a Micro USB-B connector.
Any regulated 5-volt power supply capable of at least 2 amperes can be used.
nSynC COMPATIBILITY
Compatibility ListSpecifications
CABLES
1 x USB-C to USB-C cable (up to 6.6 ft/2 m) to the mobile device.
Note: The cable is not included with the adapter.
PORTS/CONNECTORS
1 x RJ45 10/100 Ethernet port (LAN)
1 x USB-C port (for mobile device connection)
1 x Micro USB-B port (the Aux. 5V input)
1 x Charge Status LED
1 x Device Link LED
1 x Ethernet Link/Activity LED
1 x Device USB Activity LED
MEASUREMENTS
Depth: 3.3 inches (83 mm)
Width: 3.8 inches (97 mm)
Height: 1.7 inches (44 mm)
Weight: 4.1 oz
Features
Simultaneous USB host and charging for USB-C mobile devices
Wired Networking (10/100 Ethernet) support
Power over Ethernet (Class 0)
Allows for installation for up to 328 ft (100m) from power source
LAVA Limited Warranty
No mobile device rooting required
Applications
POINT OF SALES
Product Catalogues
Price Checking
Line Busting & Ticketing
POS systems
Menus, order taking
Transportation & Logistics endpoints
Digital Signage
WORKFORCE MANAGEMENT
Conference Room Scheduling
Timecard
Dispatching
In-vehicle data capture
Virtual Concierge
Patient Check In
KNOWLEDGE SHARING
Web/Video conferencing
Trade Show Guides
Customer Surveys
Remote control
Way-finding
QUALITY CONTROL
Material tracking
Production
Scheduling
