nLTS-vcE
SimulCharge™, Voltage Converter, Ethernet Adapter for Lenovo Micro USB Tablets
$89.99 / Web Price
The nLTS-vcE provides compatible Lenovo Micro USB tablets* with SimulCharge™, a built-in voltage converter and Ethernet. SimulCharge™ ensures the mobile device can simultaneously access the adapter’s wired network connection while it is charging. The adapter also features Docking Detect technology.
The nLTS-vcE can use an external DC power source, ranging from 9 to 36 volts. The DC-DC converter steps down the input voltage to a device-friendly 5 volts for use by the nLTS-vcE and mobile device.
How the nLTS-vcE Works
The nLTS-vcE adapter provides compatible Lenovo Micro USB tablets* with simultaneous charging and access to data (SimulCharge™). It features a built-in voltage converter, wired Ethernet connectivity and Docking Detect technology.
The nLTS-vcE’s on-board DC-DC voltage converter can take a power input of between 9 and 36 volts** and steps it down to the 5 volts required by most mobile devices***. The adapter can be used to supply power in permanent and semi-permanent installations (adhering to local electrical codes) with minimal installation cost. This eliminates the requirement for a licensed electrician to install and run a dedicated AC power line.
Power at a Distance
The adapter can also be installed up to 50 ft (15 m) from the AC power source. This means it can be installed in locations with limited electrical outlets and provides greater options for mobile device placement.
The nLTS-vcE’s Ethernet port provides a reliable 10/100-capable wired network connection that is more stable than Wi-Fi.
Reliable Device Connection
Docking Detect ensures the “greeting” protocols between the SimulCharge adapter and mobile device are executed correctly and consistently every time they are connected.


This allows the adapter to be a plug-and-play technology that ensures the mobile device always operates in USB Host mode.
The adapter comes in a beige ABS casing that protects the electronics from mild shocks and impacts, allowing it to be used in different implementations. It ships with a Micro USB to Micro USB cable to connect the mobile device. This custom LAVA cable must not be extended or replaced with a third-party one. Doing so will cause the mobile device to stop working.
*The nLTS-vcE is not compatible with all Lenovo tablets. Please see the list of tested Lenovo devices.
**The 9-36V DC power supply is not included with the adapter and must be purchased separately.
***The tablet can also be powered through the adapter’s Micro USB-B port, which is rated for the standard 5 volts at 2 amps. It is recommended to use the charging cable that came with the tablet. A separate power supply is not included.
ADDITONAL INFORMATION
System Requirements
POWER SUPPLY
9-36V DC power supply with Barrel Jack connector (sold separately)
For auxiliary power, a USB charger/power supply with a Micro USB-B connector, such as the power supply provided with the mobile device. Any regulated 5-volt power supply capable of at least 2 amperes can be used.
nLTS COMPATIBILITY
Compatibility ListSpecifications
CABLES
1 x Micro USB to Micro USB cable (3.3 ft / 1 m) to the tablet.
Note: The cable is included with the adapter.

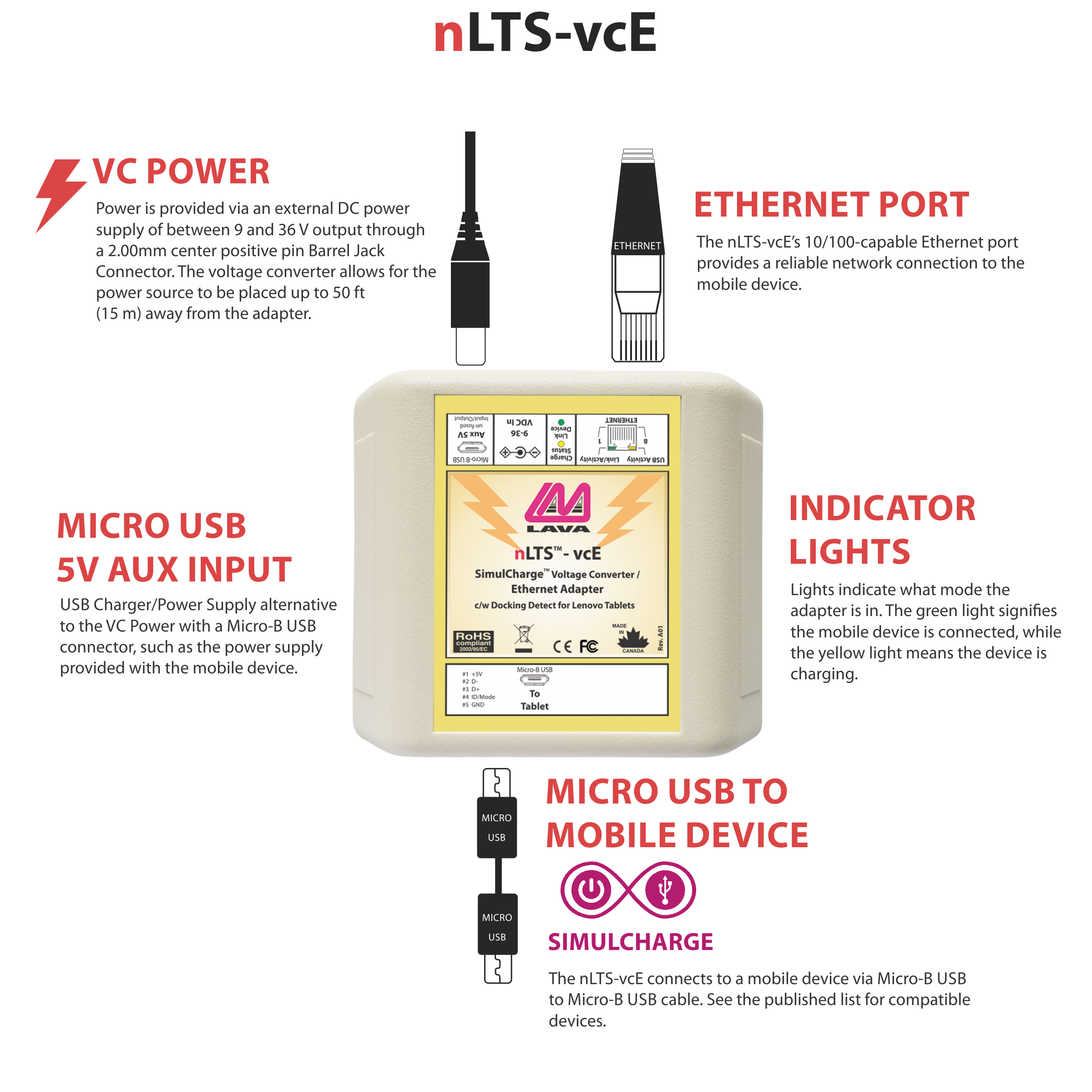

PORTS/CONNECTORS
1 x Barrel (2 mm) DC Output Connector (Centre Pin Positive)
1 x RJ45 10/100 Ethernet port (LAN)
1 x Micro USB-B port (for tablet connection)
1 x Micro USB-B port (the Aux. 5V input)
1 x Charge Status LED
1 x Device Link LED
1 x Ethernet Link/Activity LED
1 x Tablet USB Activity LED
MEASUREMENTS
Depth: 3.3 inches (83 mm)
Width: 3.8 inches (97 mm)
Height: 1.7 inches (44 mm)
Weight: 4.1 oz
Features
Simultaneous USB host and charging for
Lenovo Micro USB tablets
Wired Networking (10/100 Ethernet) support
Powered by a standard USB Charger or
AC/DC Power Supply
Voltage Converter allows for installation up to 50ft (15m) from the power source
LAVA Limited Warranty
No tablet rooting required
Applications
POINT OF SALES
Product Catalogues
Price Checking
Line Busting & Ticketing
POS systems
Menus, order taking
Transportation & Logistics endpoints
Digital Signage
WORKFORCE MANAGEMENT
Conference Room Scheduling
Timecard
Dispatching
In-vehicle data capture
Virtual Concierge
Patient Check In
KNOWLEDGE SHARING
Web/Video conferencing
Trade Show Guides
Customer Surveys
Remote control
Way-finding
QUALITY CONTROL
Material tracking
Production
Scheduling
