eSeries
A8 evc2UE Enclosure
2 x USB-A | Ethernet | Voltage Converter | Battery Protection
$314.99 (Tablet Not Included)
Specifically designed for the Samsung Galaxy Tab A8 (SM-X200), the A8 evc2UE Enclosure leverages our SimulCharge™ technology to provide power and data in one robust solution. This product's built-in adapter features Ethernet, two USB-A ports and a voltage converter, allowing it to take a 9-36-volt DC power supply. It steps down the voltage to 5 volts for use by the tablet. You can install the Enclosure up to 50ft (15m) from the power supply, without having to hire an electrician. This product also has Network Recovery and Battery Modulation (RBM). Network Recovery works to re-establish a connection in the event that it drops out. Meanwhile, Battery Modulation protects your battery from swelling caused by overcharging. Built for 24/7 installations, this product will help your tablet last up to five years, even in heavy-use environments.
Features & Details
- For Samsung Galaxy Tab A8 (SM-X200)
- Built-in SimulCharge adapter (eSynC-vc2UE)
- Includes DC-DC voltage converter, Ethernet and 2x USB-A ports
- 10/100-capable network connection
- Up to 50ft (15m) from power source
- Features Network Recovery and Battery Modulation (RBM)
- Requires LTM – LAVA Tablet Manager (free Android app)
- Includes Screen Brightness Management
- Can be used with 12- and 24-volt electrical systems
- Requires 9-36-volt DC power supply with 2mm centre pin positive barrel jack connector
Made in Canada
Quality Tested
Battery Modulation (RBM)
Network Recovery
LAVA Limited Warranty
System Requirements
Power Supply:
- 9-36V DC power supply with barrel jack connector (sold separately)
Specifications

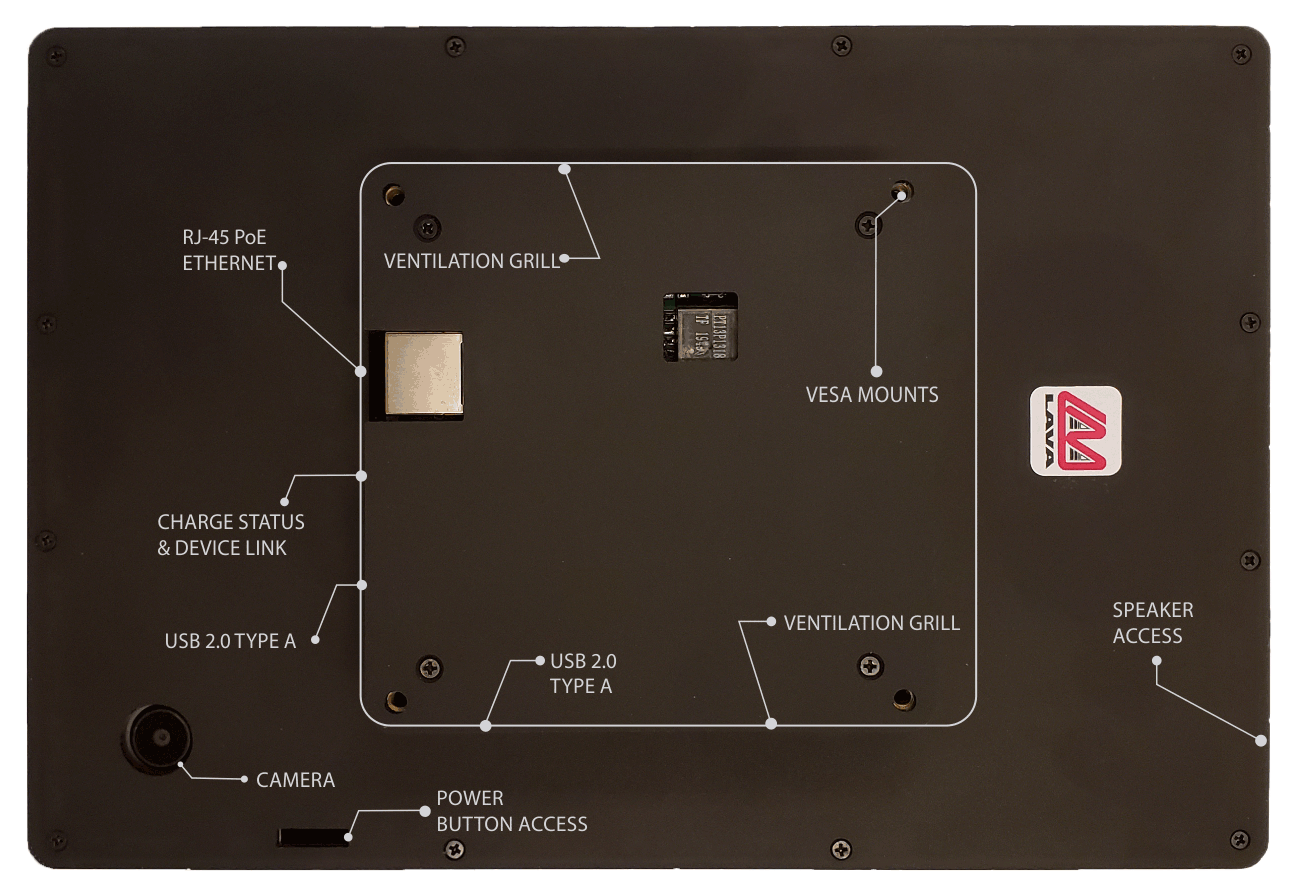

Ports & Connectors:
- 1x Barrel (2mm) DC Output Connector (Centre Pin Positive)
- 1x RJ45 10/100 Ethernet port (LAN)
- 2x USB-A ports (for USB 2.0 accessories)
LED Indicators:
- 1x Charge Status LED
- 1x Device Link LED
- 1x Ethernet Link/Activity LED
- 1x Device USB Activity LED
Applications
POINT OF SALES
- Product Catalogues
- Price Checking
- Line Busting & Ticketing
- POS systems
- Menus (order taking)
- Transportation & Logistics endpoints
- Digital Signage
WORKFORCE MANAGEMENT
- Conference Room Scheduling
- Timecard
- Dispatching
- In-vehicle data capture
- Virtual Concierge
- Patient Check In
KNOWLEDGE SHARING
- Web/Video conferencing
- Trade Show Guides
- Customer Surveys
- Remote control
- Way-finding
QUALITY CONTROL
- Material tracking
- Production
- Scheduling
