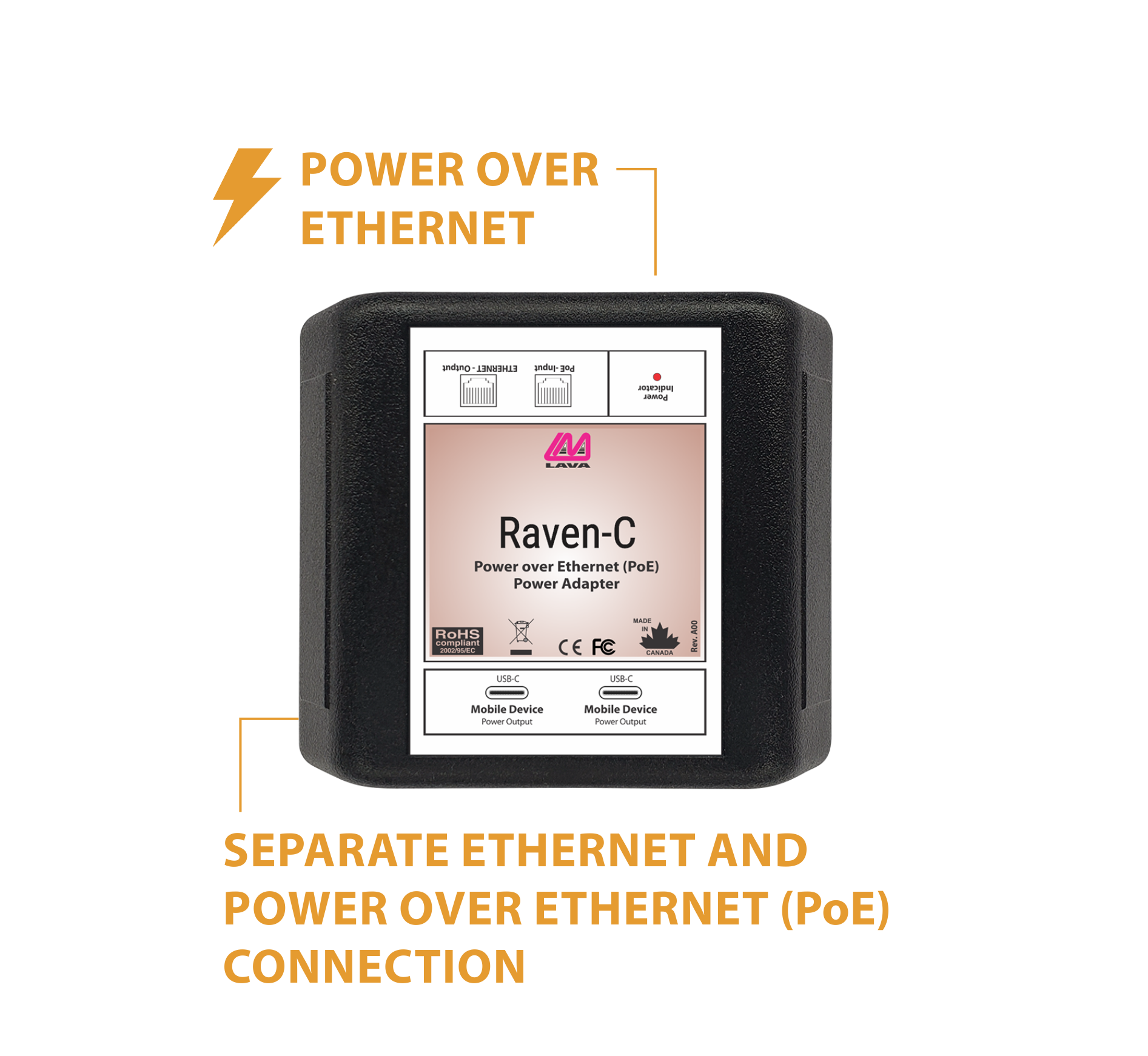

A PoE splitter, the Raven-C takes in Power over Ethernet and splits into power and Ethernet. It features two USB-C ports for mobile device charging and one Ethernet port for a wired network connection. The adapter can be placed up to 328ft (100m) away from the power source. What's more, without the need for AC cable routing, it can be installed without an electrician. This adapter is capable of both standard (5-volt) and fast (9-volt) charging.
Features & Details
- For powering two compatible USB-C devices at once
- 9-volt fast charging or 5-volt standard charging
- Includes Power over Ethernet (PoE) and Ethernet
- 10/100-capable network connection (for tertiary device with LAN port)
- Up to 328ft (100m) from power source
- 10.4 watts of charging power
- Requires CAT5/5e/6 Ethernet cable
- Requires a PoE injector or switch capable of a minimum 15-watt output
- USB-C to USB-C cable available but not included
Made in Canada
Quality Tested
LAVA Limited Warranty
System Requirements
Power Supply:
- PoE-Capable Network Switch or Power Injector (up to 15.4W)
Raven Compatibility:
Compatibility ListSpecifications
Cables:
1x Standard Ethernet Cat 5/5e/6 cable
1x USB-C to USB-C cable (up to 5ft/1.5m)
Note: The cables are not included. However, the USB-C cable may be purchased from LAVA.

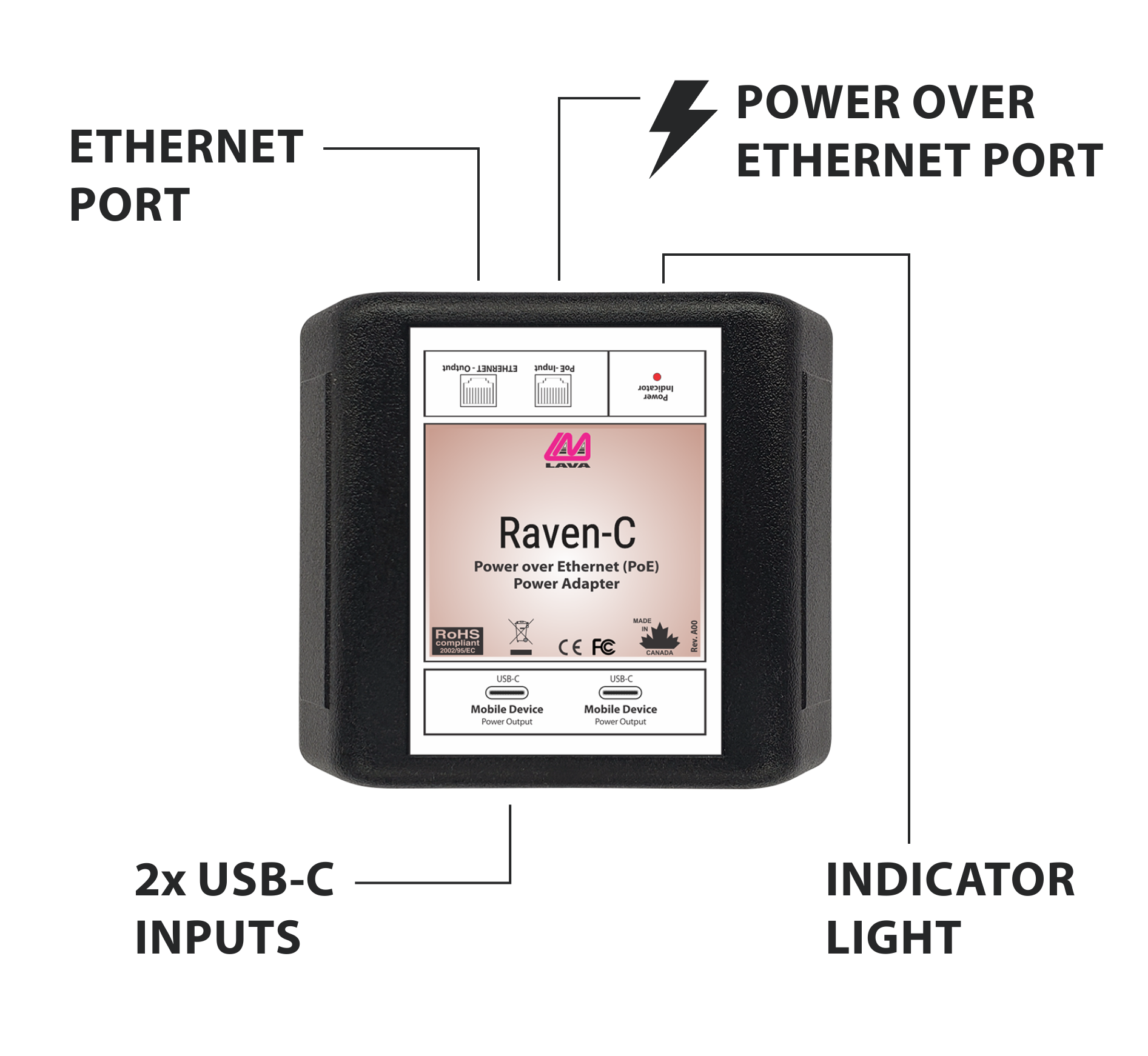

Ports & Connectors:
- 2x USB-C ports (power output only: 9V at 1.1A or 5V at 2A)
- 1x RJ45 LAN port (to wired Ethernet connection)
- 1x RJ45 LAN port (to PoE Network Switch)
LED Indicators:
- 1x Power Indicator LED
Applications
USE CASES
- Providing power and Ethernet connectivity to USB-C security cameras
- Powering/Charging up to two USB-C mobile devices
- Providing PC with wired network connection
