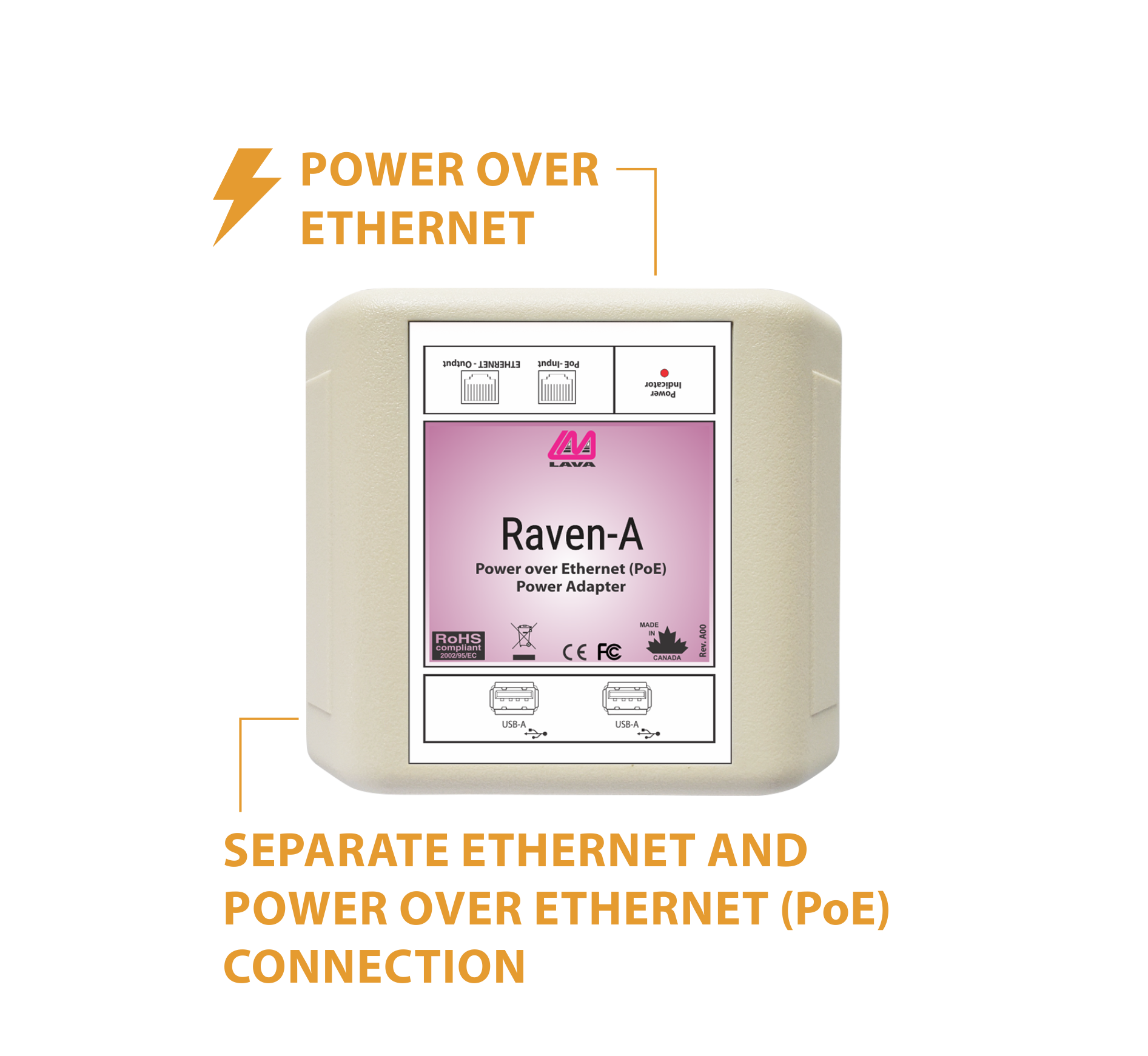

A PoE splitter, the Raven-A takes in Power over Ethernet and splits it into separate power and Ethernet lines. It features two USB-A ports for charging mobile devices and one Ethernet port for a network connection. Providing flexibility of distance, a PoE adapter may be installed up 328ft (100m) from the power source. Moreover, because there is no need for dedicated AC cable routing it does not require the help of an electrician.
Features & Details
- For powering two USB devices at once
- Includes Power over Ethernet (PoE) and Ethernet
- 10/100-capable network connection (for tertiary device with LAN port)
- Up to 328ft (100m) from power source
- 10.4 watts of charging power
- Requires CAT5/5e/6 Ethernet cable
- Requires a PoE injector or switch capable of a minimum 15-watt output
- Works with any standard USB charging cables (device cables recommended)
- (Note: To use with an Apple product, jumpers on the adapter’s USB-A ports must be reconfigured)
Made in Canada
Quality Tested
LAVA Limited Warranty
System Requirements
Power Supply:
- PoE-Capable Network Switch or Power Injector (up to 15.4W)
Specifications
Cables:
1x Standard Ethernet Cat 5/5e/6 cable
Note: The cable is not included

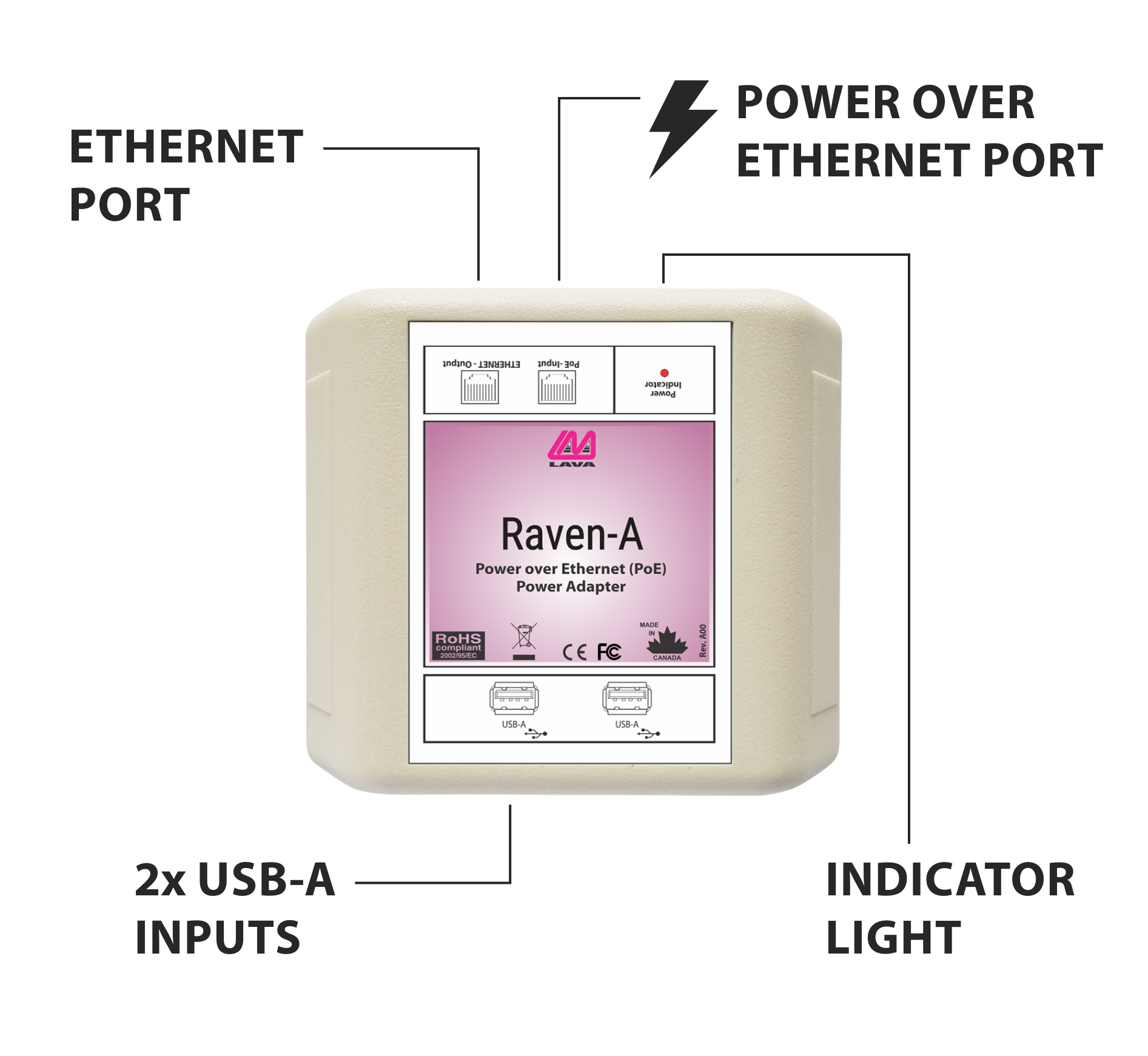

Ports & Connectors:
- 2x USB-A ports (power output only: 5V at 2A)
- 1x RJ45 LAN port (to wired Ethernet connection)
- 1x RJ45 LAN port (to PoE Network Switch)
- 2x 6-pin Charger Configuration jumpers (can be reconfigured to work with Apple products)
LED Indicators:
- 1x Power Indicator LED
Applications
USE CASES
- Providing power and Ethernet connectivity to IP security camera system
- Powering/Charging up to two mobile devices
- Powering/Charging up to two or USB peripherals
- Providing PC with wired network connection
