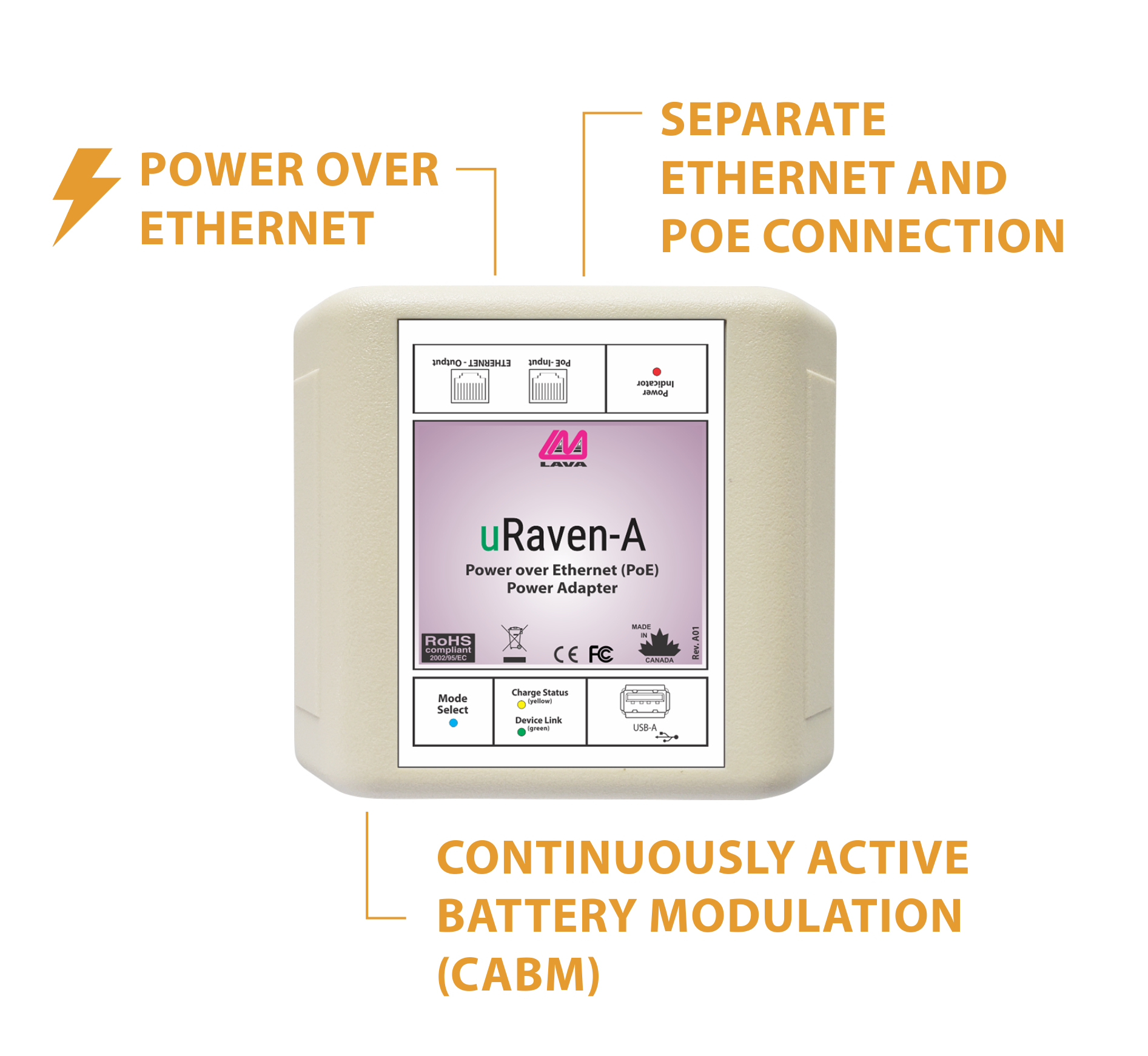

A PoE splitter with a USB-A port, the uRaven-A splits Power over Ethernet into separate power and Ethernet lines. PoE offers the advantage of flexibility as it may be installed at a great distance. You may place a PoE adapter up to 328ft (100m) away from the power source, without the help of an electrician. As part of the u Series family, this adapter also includes plug-and-play Battery Modulation for protection. This technology prevents overcharging, which is demonstrated to significantly extend the lifespan of your device.
Features & Details
- For powering USB devices
- Includes Power over Ethernet (PoE) and Ethernet
- 10/100-capable network connection (for secondary device with LAN port)
- Features Continuously Active Battery Modulation (CABM)
- Up to 328ft (100m) from power source
- 10.4 watts of charging power
- Requires CAT5 / 5e / 6 Ethernet cable
- Requires a PoE injector or switch capable of a minimum 15-watt output
- Works with any standard USB charging cable (device cable recommended)
- (Note: To use with an Apple product, a jumper on the adapter’s USB-A port must be reconfigured)
Made in Canada
Quality Tested
Battery Modulation (CABM)
LAVA Limited Warranty
System Requirements
Power Supply:
- PoE-Capable Network Switch or Power Injector (up to 15.4W)
Specifications
Cables:
1x Standard Ethernet Cat 5/5e/6 cable
Note: The cable is not included

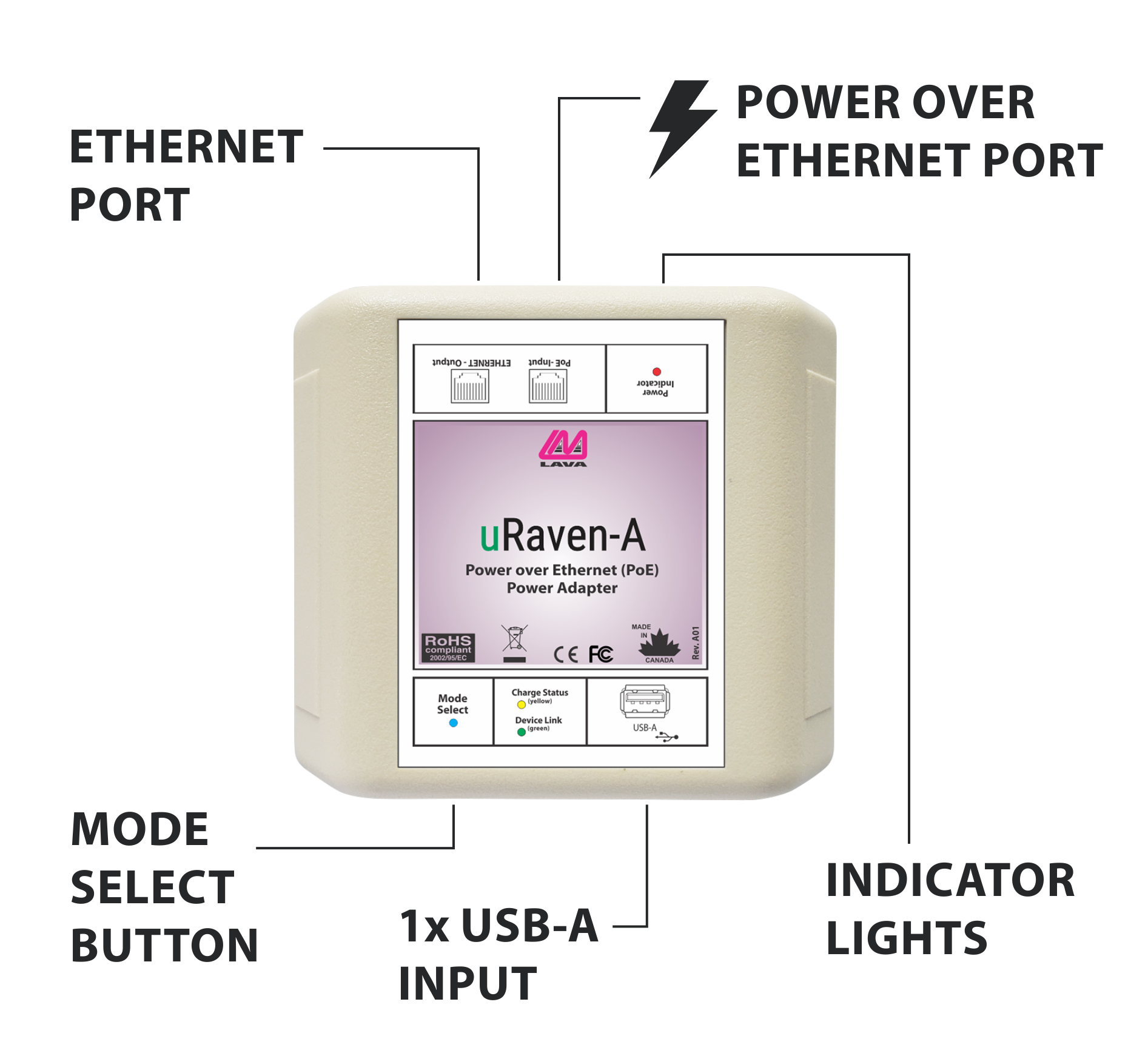

Ports & Connectors:
- 1x USB-A port (power output only: 5V at 2A)
- 1x RJ45 LAN port (to wired Ethernet connection) 1x RJ45 LAN port (to PoE Network Switch)
- 2x 6-pin Charger Configuration jumpers (can be reconfigured to work with Apple products)
- 1x Mode Select button
LED Indicators:
- 1x Power indicator LED
- 1x Charge Status indicator LED
- 1x Device Link indicator LED
Applications
USE CASES
- Providing power and Ethernet connectivity to IP security camera system
- Powering/Charging a mobile device
- Powering/Charging a USB peripheral
- Providing PC with wired network connection
